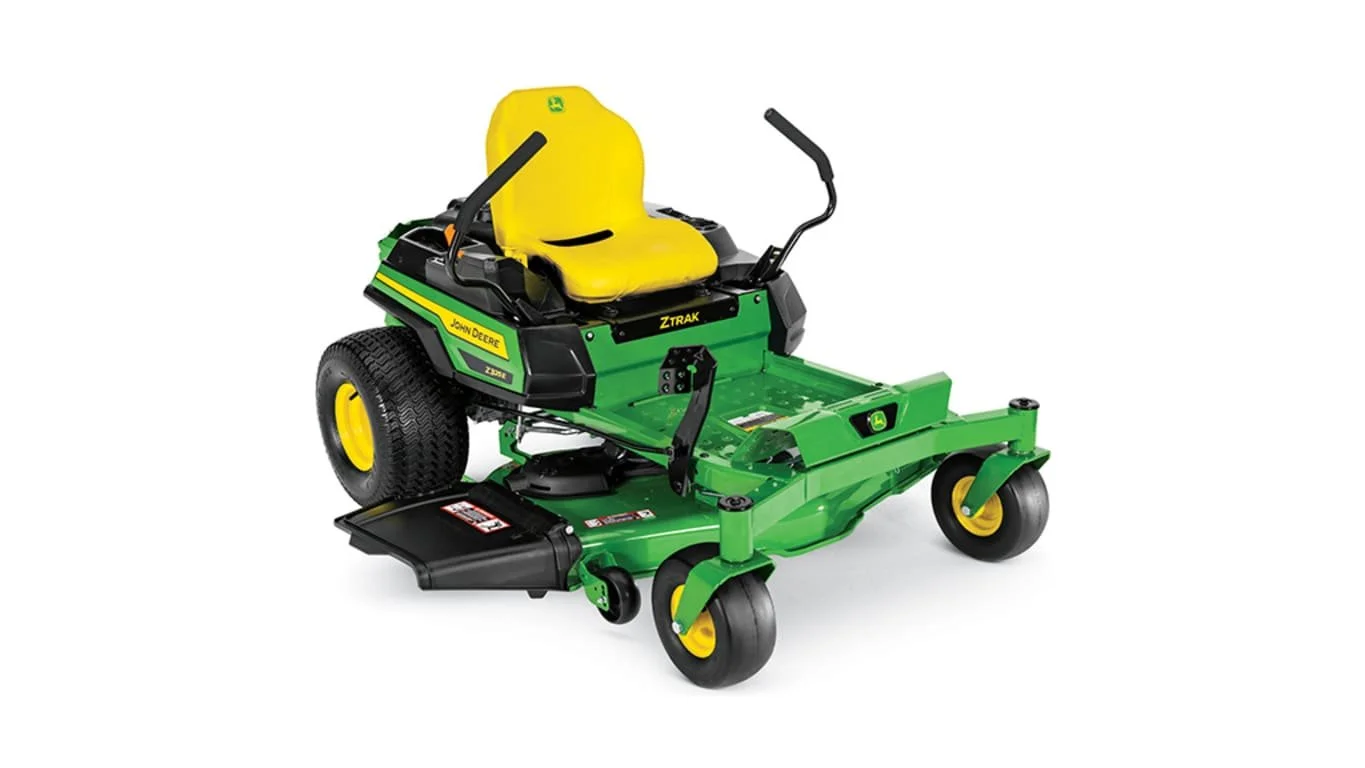

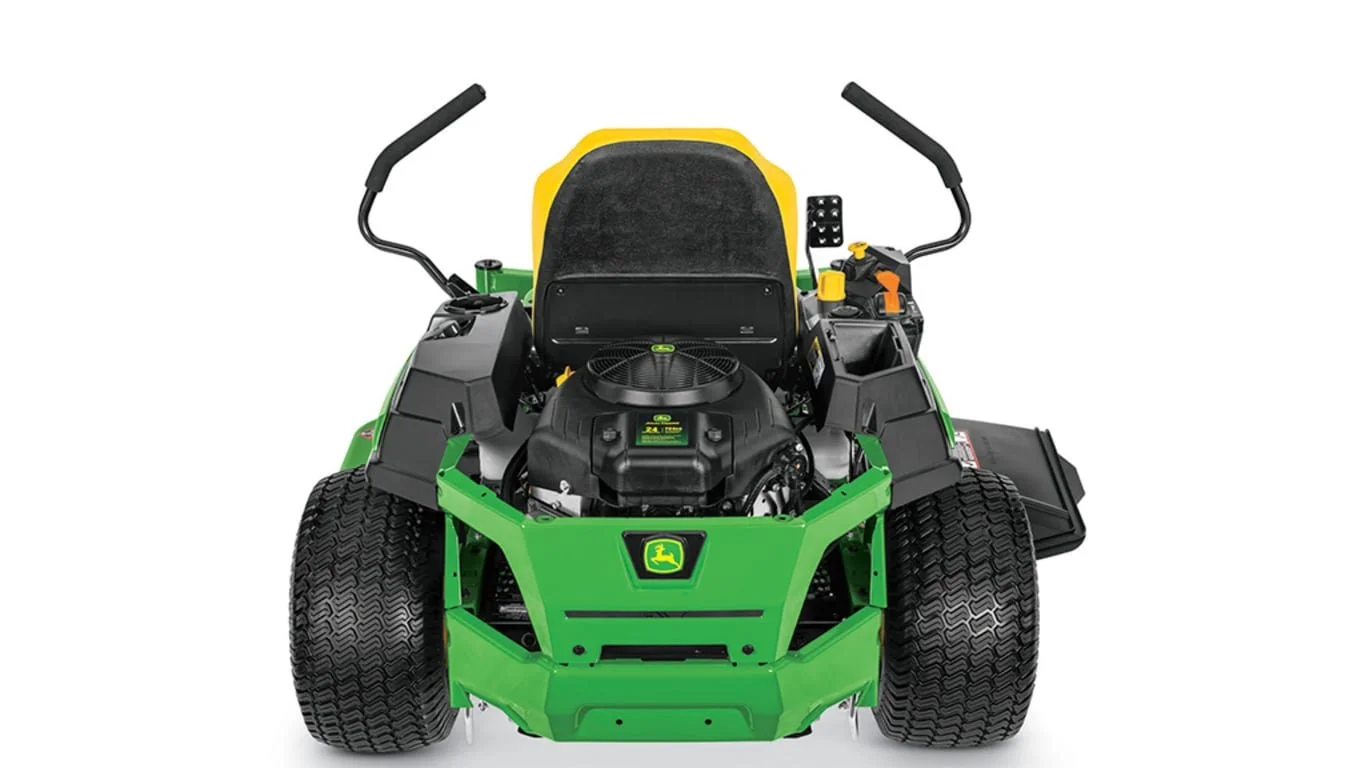

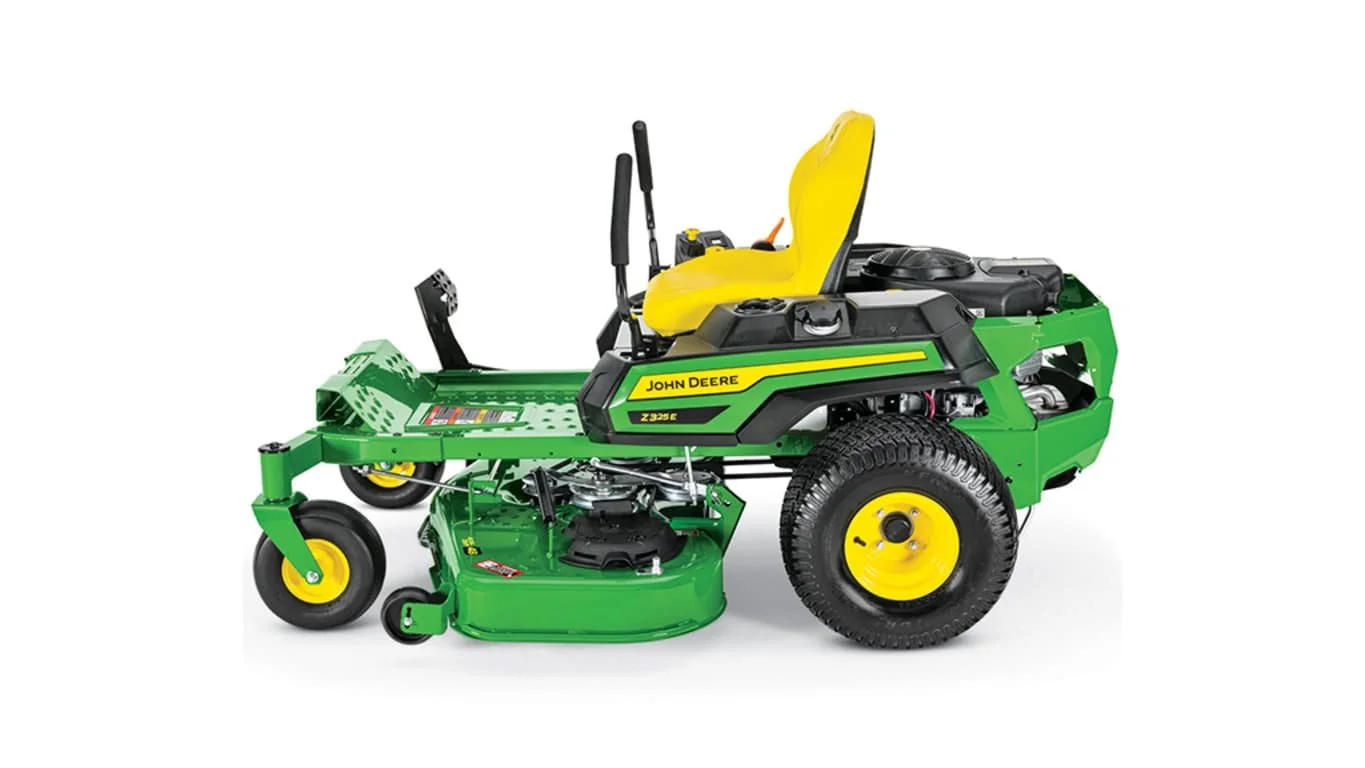

Name: Z325E ZTrak™ Mower with 48-in. Decks.
SKU: 11551497
Availability: InStock

ne power

24 hp

Key Specs
17.9 kW
Engine model number	44 EXi
Forward speed	0-7 mph 0-11.3 km/h
Front caster tires	11×6-5
Drive tires	20×10-8
Seat back height	High back with optional armrests, 18 in. 46 cm
Width of cut	Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm
Mulching system	Optional MulchControl™ attachment
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine
Power	24 hp 17.9 kW
Model number	44 EXi
Displacement	44.2 cu in. 724 cc
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type	Overhead valve
Battery	12 V 300 CCA
Choke/speed control	Single lever
Cooling method	Air
Fuel tank capacity	3.0 U.S. gal. 11.4 L
Fuel gauge	Translucent tank

Drive train
Dual hydros	Hydro-Gear EZT-D with 1-in. (2.5-cm) axles

Chassis
Frame	Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint	E-coat/powder
Front caster tires	11×6-5
Front caster bearings	Sealed ball bearings
Drive tires	20×10-8
Hour meter	Yes
Service interval decal	Yes
Storage compartment	Optional covered
Cup holder	Yes
Maximum towing capacity	250 lb 113 kg

Seat
Seat back height	High back with optional armrests, 18 in. 46 cm
Fore-aft adjustment	2.9 in. 7 cm
Seat suspension	Two springs

Mower deck
Width of cut	Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm
Type	Side discharge
Mower deck material	10 gauge 0.135 in. 3.4 mm
Mower drive system	V-belt

PTO
Type	Electric, 105 lb-ft 142 Nm
Drive	V-belt

Dimensions
Wheelbase	49.4 in. 1255 mm
Overall length	75.4 in. 1915 mm
Width without mower	43.3 in. 1100 mm
Width with mower	48A: 62.6 in. 1590 mm 54A: 68.5 in. 1740 mm
Width with mower (deflector raised for storage)	48A: 52.8 in. 1340 mm 54A: 57.1 in. 1450 mm
Height	42.5 in. 1080 mm
Weight	48A: 594 lb 270 kg 54A: 605 lb 275 kg

Operation
Rollover protective structure (ROPS)	No
Slope operating limit	13 degrees; 10 degrees with Material Collection System
Operator presence system	Yes
Park brake interlock	Yes
Operator video	Yes, online

Buyer’s notes
Note 1	Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels
Note 2	Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3	Integrated park brake is automatically applied when steering levers are stowed outward
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional attachments
Mulching system	Optional MulchControl™ attachment
Rubber floor mat	Optional
Sun shade	Optional
Mounted sprayer	Not available
Protective cover	Optional
Light kit	Optional

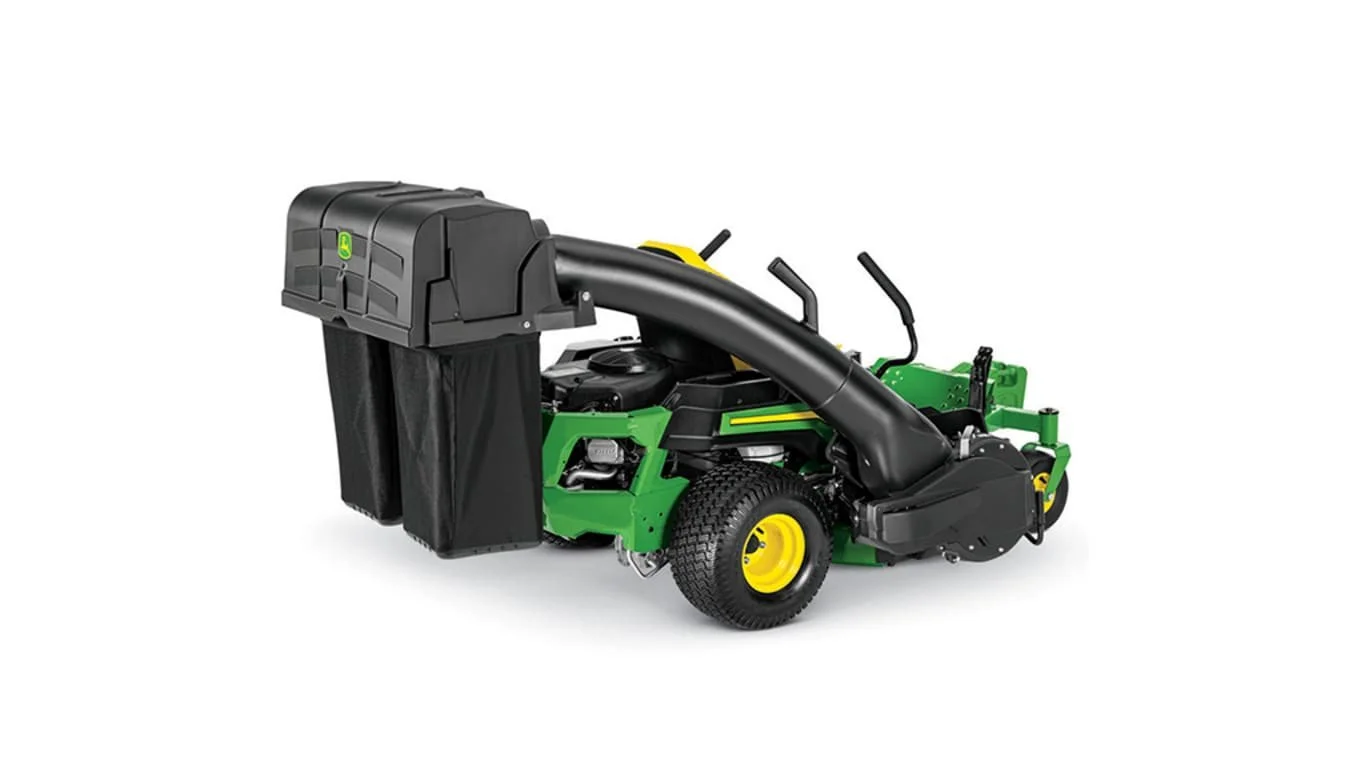

Material collection system	Two-bag Power Flow MCS, 6.5 bu 229 L
